EDV I 970

Star InactiveStar InactiveStar InactiveStar InactiveStar Inactive

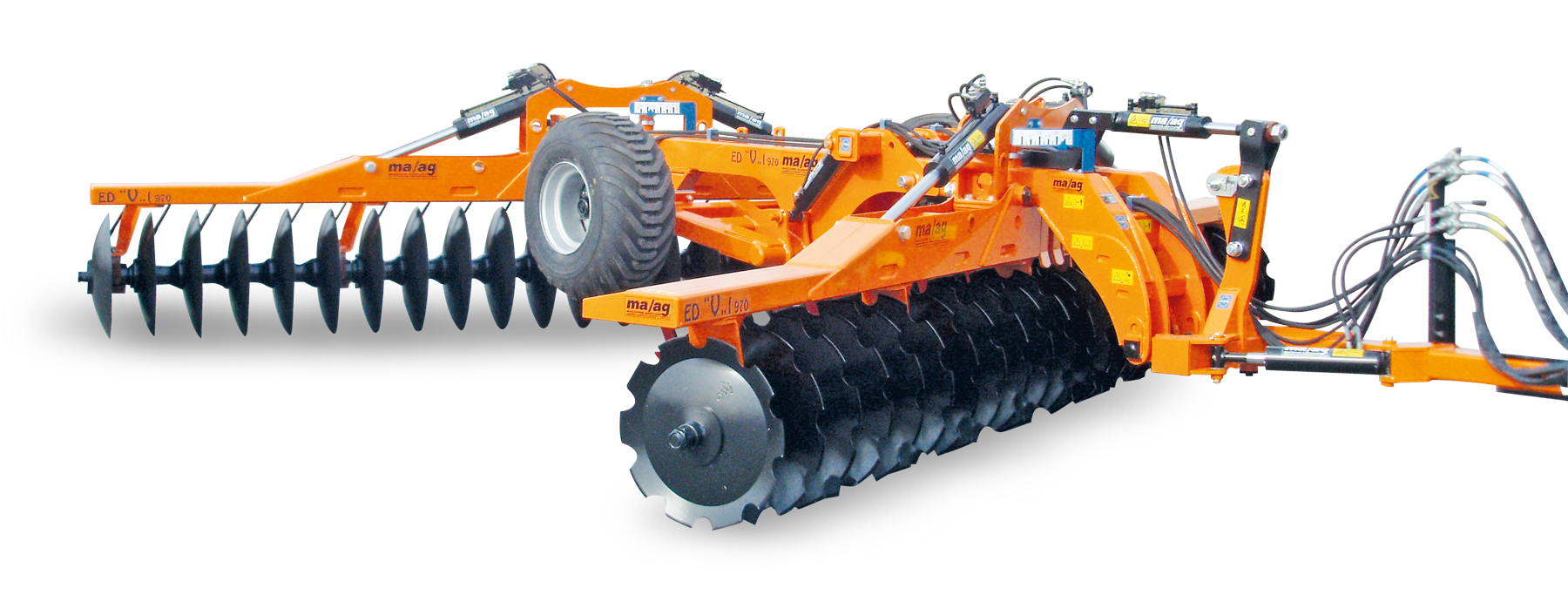

Edv I 970 Scontornata



Polyvalent equipment used for working and for mixing the hard ground or for crumbling and levelling the soil already worked.

EDV and EDV I disc harrows are characterized by a wide range of usage with working width from 2,10 m to 6,25 m and variable working depth from 10 to 25 cm (according to the model). The supports of the discs are oscillating with double contrasting conical roller bearings, oil seal, greaser and interchangeable crankcase (ma/ag system).

The hydraulic regulation of the discs sections, front and rear, allows a progressive and independent variation of the angle of incidence in order to obtain the optimal work on different kind of ground.



STANDARD EQUIPMENT
DOUBLE BEAM FRAME Tubular steel 150x100x8 mm
SECTIONS Tubular steel 200x100x8 mm
SUPPORTS Two conical roller bearings, swiveling, with interchangeable crankcase system ma/ag
CARRIAGE CONTROL Hydraulic, with 2 jacks with stop valve
DISCS AXLE Steel square 40x40 mm
WHEELS AXLE Steel square 60x60 mm 6 holes hub
TOWING BEAM Shift able and inclinable in different positions; hydraulic at demand
SECTIONS ANGULATION Hydraulic, independent front and rear
SOIL SCRAPERS Individual adjustable plungers
DISCS Diam. 610 mm thickness 5 mm - diam. 660 mm thickness 6 mm - diam. 710 mm thickness 7 mm
DISCS DISTANCE 230 mm - 270 mm
  Vertical hydraulic folding in 2 sections for reducing the floor space during the transport (2,55 m only with discs ø 610 mm - ø 660 mm)
  The machines have on series toothed discs on the front and smooth discs on the back.
Different configurations have to be specified at the order.

Version with disc distance 230 mm

  EDV I 970 36 12 EDV I 970 36 13
DISCS N. 36 36
WORK. WIDTH 4,10 4,10
TRANSP. WIDTH 2,50 2,55
SUPPORT N. 10 10
HP 160 180
KG 3980 4090
Ø DISC 610/5 660/6
  EDV I 970 40 12 EDV I 970 40 13
DISCS N. 40 40
WORK. WIDTH 4,55 4,55
TRANSP. WIDTH 2,50 2,55
SUPPORT N. 12 12
HP 190 210
KG 4330 4450
Ø DISC 610/5 660/6
  EDV I 970 44 12 EDV I 970 44 13
DISCS N. 44 44
WORK. WIDTH 4,95 4,95
TRANSP. WIDTH 2,50 2,55
SUPPORT N. 12 12
HP 220 240
KG 4570 4680
Ø DISC 610/5 660/6
  EDV I 970 48 13
DISCS N. 48
WORK. WIDTH 5,40
TRANSP. WIDTH 2,55
SUPPORT N. 12
HP 280
KG 4930
Ø DISC 660/6



Version with disc distance 270 mm

  EDV I 970 28 23 EDV I 970 28 24
DISCS N. 28 28
WORK. WIDTH 3,60 3,60
TRANSP. WIDTH 2,55 2,65
SUPPORT N. 8 8
HP 150 160
KG 3830 3940
Ø DISC 660/6 710/7
  EDV I 970 32 23 EDV I 970 32 24
DISCS N. 32 32
WORK. WIDTH 4,30 4,30
TRANSP. WIDTH 2,55 2,65
SUPPORT N. 10 10
HP 170 180
KG 4110 4190
Ø DISC 660/6 710/7
  EDV I 970 36 23 EDV I 970 36 24
DISCS N. 36 36
WORK. WIDTH 4,75 4,75
TRANSP. WIDTH 2,55 2,65
SUPPORT N. 12 12
HP 190 210
KG 4260 4350
Ø DISC 660/6 710/7
  EDV I 970 40 23 EDV I 970 40 24
DISCS N. 40 40
WORK. WIDTH 5,10 5,10
TRANSP. WIDTH 2,55 2,65
SUPPORT N. 12 12
HP 220 260
KG 4470 4590
Ø DISC 660/6 710/7
  EDV I 970 44 23
DISCS N. 44
WORK. WIDTH 5,70
TRANSP. WIDTH 2,65
SUPPORT N. 12
HP 300
KG 4950
Ø DISC 660/6



CODE DESCRIPTION
ACEDVI97002 Disc and distance piece with soil scraper
ACEDVI97003 Hydraulic movement of the towing beam
ACEDVI97004 Supports for mounting the discs 610/6 (each disc)
ACEDVI97005 Additional supports for EDVI
ACEDVI97008 Kit hydraulic regulation balance machine
ACEDVI97009 Couple of oversized wheels 400/60 - 15.5
ACEDVI97010 Kit central discs cleaner (each)
ACEDVI97011 Hydraulic kit device complete with pipes (each)
ACEDVI97013 Dislocated towing bell
ACEDVI97014 Light bar kit with support
ACEDVI97015 Solenoid valve kit for hydraulic controls with control unit in the cab.
ACEDVI97016 Increase for oil bath supports for disc distance 230 mm (each)
ACEDVI97017 Increase for oil bath supports for disc distance 270 mm (each)



CAGE ROLLER KIT
Rear hydraulic kit with cage roller diameter 550 with n. 10 pipes or plates, complete with adjustable compensation springs. Foldable in two sections.
At the order, please specify if the roller is with pipes or plates.
For coupling disc harrows with distance 270 mm, please consider the bigger model.

CODE DESCRIPTION
ACRGEDVI90032 Cage roller kit with pipes or plates for EDVI950/970 32
ACRGEDVI90036 Cage roller kit with pipes or plates for EDVI950/970 36
ACRGEDVI90040 Cage roller kit with pipes or plates for EDVI950/970 40
ACRGEDVI90044 Cage roller kit with pipes or plates for EDVI970 44



HARROW COMB DISC KIT
Rear harrow comb kit with springs inclination diam.12 mm, manually adjustable.
For coupling disc harrows with distance 270 mm, please consider the bigger model.

CODE DESCRIPTION
ACSTEDVI90032 Harrow comb kit for EDVI950/970 32
ACSTEDVI90036 Harrow comb kit for EDVI950/970 36
ACSTEDVI90040 Harrow comb kit for EDVI950/970 40
ACSTEDVI90044 Harrow comb kit for EDVI970 44

Compactor rollers and breaking soil
