EDV I 970 HD

Star InactiveStar InactiveStar InactiveStar InactiveStar Inactive

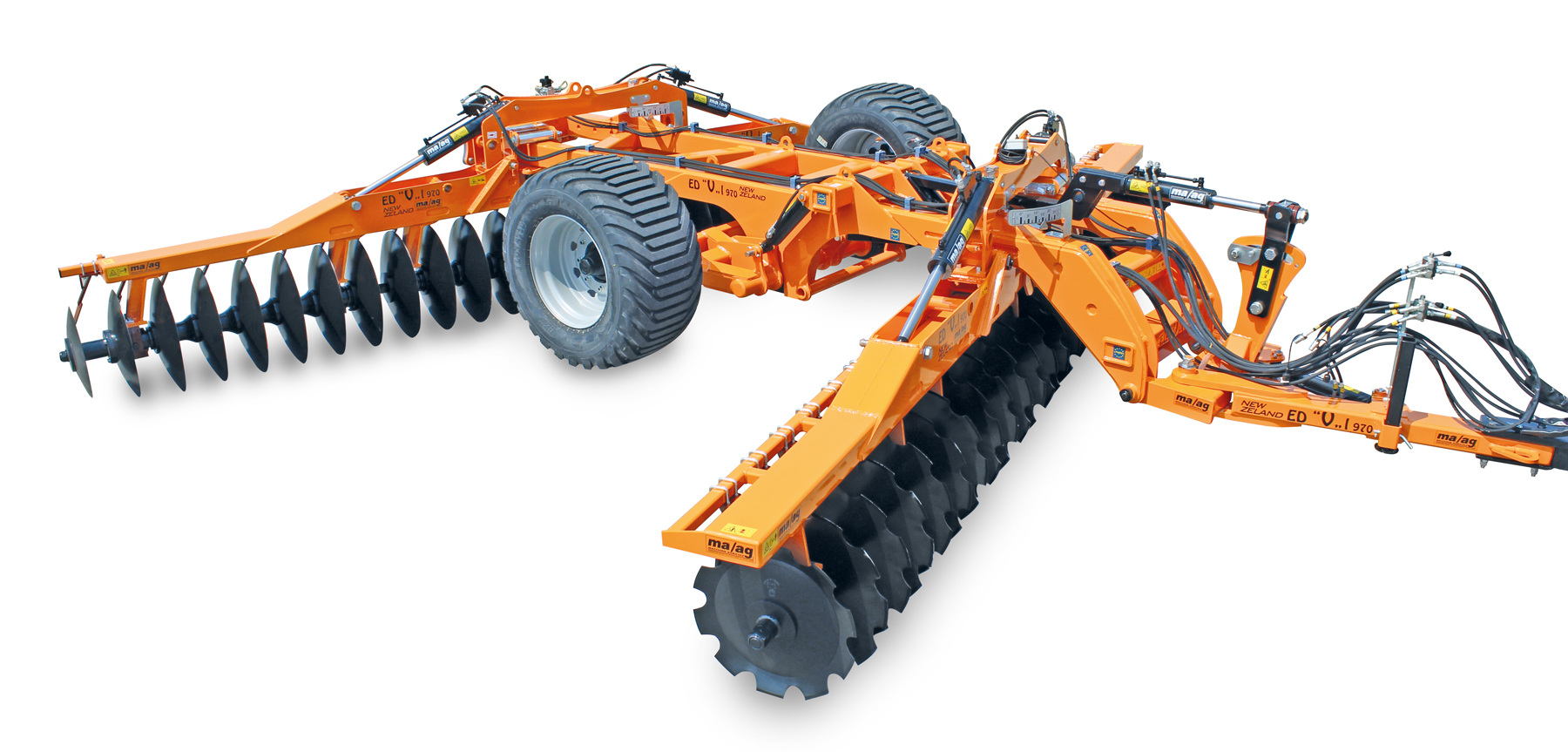

Edv I 970HD Scontornata



Polyvalent equipment used for working and for mixing the hard ground or for crumbling and levelling the soil already worked.

EDV and EDV I disc harrows are characterized by a wide range of usage with working width from 2,10 m to 6,25 m and variable working depth from 10 to 25 cm (according to the model). The supports of the discs are oscillating with double contrasting conical roller bearings, oil seal, greaser and interchangeable crankcase (ma/ag system).

The hydraulic regulation of the discs sections, front and rear, allows a progressive and independent variation of the angle of incidence in order to obtain the optimal work on different kind of ground.



STANDARD EQUIPMENT
DOUBLE BEAM FRAME Tubular steel 150x100x8 mm
SECTIONS Tubular steel 200x100x8 mm
SUPPORTS Two conical roller bearings, swiveling, with interchangeable crankcase system ma/ag
CARRIAGE CONTROL Double effect jack with hydraulic slider for working depth regulation
DISCS AXLE Steel square 40x40 mm
WHEELS AXLE Steel square 80x80 mm - 8 holes hub
WHEELS 500/50-17
TOWING BEAM Shift able and inclinable in different positions; hydraulic at demand
SECTIONS ANGULATION Hydraulic - independent front and rear
SOIL SCRAPERS Individual adjustable plungers
DISCS Diam. 660 mm thickness 6 mm and diam. 710 mm thickness 7 mm
DISCS DISTANCE 230 mm - 270 mm
  Hydraulic vertical folding into 2 sections, in order to reduce the encumbrance during the transport (3,00)
  The machines have on series toothed discs on the front and smooth discs on the back.
Different configurations have to be specified at the order.



Version with disc distance 230 mm

  EDV I 970 HD 36 13
DISCS N. 36
WORK. WIDTH 4,10
TRANSP. WIDTH 3,00
SUPPORT N. 12
HP 180
KG 5360
Ø DISC 660/6
  EDV I 970 HD 40 13
DISCS N. 40
WORK. WIDTH 4,55
TRANSP. WIDTH 3,00
SUPPORT N. 12
HP 220
KG 5620
Ø DISC 660/6
  EDV I 970 HD 44 13
DISCS N. 44
WORK. WIDTH 4,95
TRANSP. WIDTH 3,00
SUPPORT N. 12
HP 240
KG 5800
Ø DISC 660/6



Version with disc distance 270 mm

  EDV I 970 HD 36 23 EDV I 970 HD 36 24
DISCS N. 36 36
WORK. WIDTH 4,75 4,75
TRANSP. WIDTH 3,00 3,00
SUPPORT N. 12 12
HP 200 240
KG 5430 5720
Ø DISC 660/6 710/7
  EDV I 970 HD 40 23 EDV I 970 HD 40 24
DISCS N. 40 40
WORK. WIDTH 5,10 5,10
TRANSP. WIDTH 3,00 3,00
SUPPORT N. 12 12
HP 240 280
KG 5630 5950
Ø DISC 660/6 710/7
  EDV I 970 HD 44 23 EDV I 970 HD 44 24
DISCS N. 44 44
WORK. WIDTH 5,70 5,70
TRANSP. WIDTH 3,00 3,00
SUPPORT N. 16 16
HP 280 320
KG 5830 6160
Ø DISC 660/6 710/7
  EDV I 970 HD 48 23 EDV I 970 HD 48 24
DISCS N. 48 48
WORK. WIDTH 6,25 6,25
TRANSP. WIDTH 3,00 3,00
SUPPORT N. 16 16
HP 320 350
KG 6240 6620
Ø DISC 660/6 710/7



CODE DESCRIPTION
ACEDVI970HD02 Disc and distance piece with soil scraper
ACEDVI970HD03 Hydraulic movement of the towing beam
ACEDVI970HD04 Supports for mounting the discs 660/7 (each disc)
ACEDVI970HD08 Kit hydraulic regulation balance machine
ACEDVI970HD09 Couple of oversized wheels 500/45 – 22.5
ACEDVI970HD10 Kit central discs cleaner
ACEDVI970HD11 Hydraulic kit device complete with pipes
ACEDVI970HD13 Dislocated towing bell
ACEDVI970HD14 Light bar kit with support
ACEDVI970HD15 Solenoid valve kit for hydraulic controls with control unit in the cab
ACEDVI970HD16 Increase for oil bath supports for disc distance 230 mm (each)
ACEDVI970HD17 Increase for oil bath supports for disc distance 270 mm (each)
