EDV I 950 articolo

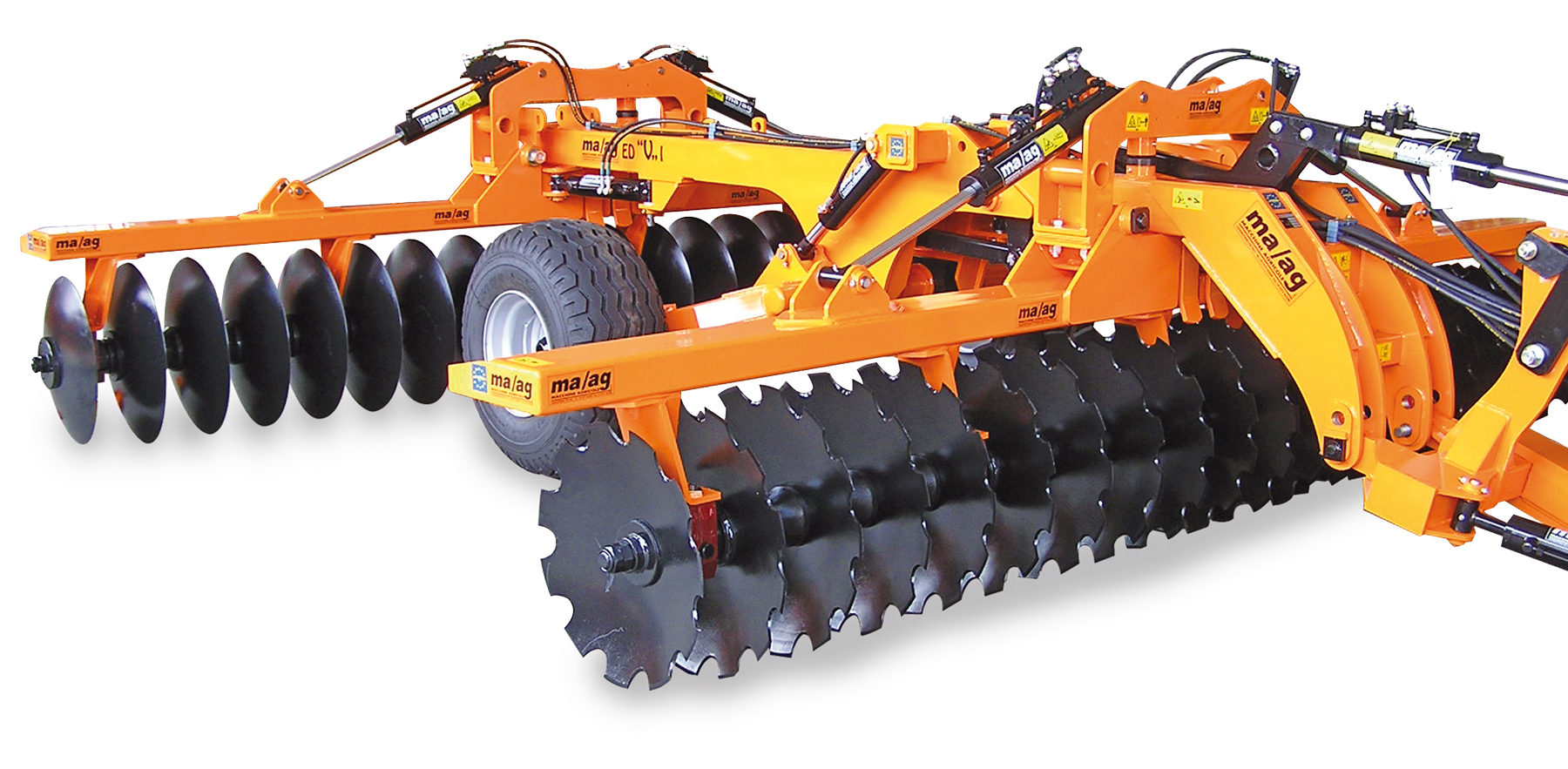

Polyvalent equipment used for working and for mixing the hard ground or for crumbling and levelling the soil already worked.

EDV and EDV I disc harrows are characterized by a wide range of usage with working width from 2,10 m to 6,25 m and variable working depth from 10 to 25 cm (according to the model). The supports of the discs are oscillating with double contrasting conical roller bearings, oil seal, greaser and interchangeable crankcase (ma/ag system).

The hydraulic regulation of the discs sections, front and rear, allows a progressive and independent variation of the angle of incidence in order to obtain the optimal work on different kind of ground.



STANDARD EQUIPMENT
DOUBLE BEAM FRAME Tubular steel 120x100x8 mm - double beam
SECTIONS Tubular steel 160x80x8 mm
SUPPORTS Two conical roller bearings, swiveling, with interchangeable crankcase system ma/ag
CARRIAGE CONTROL Double effect jack with hydraulic slider for working depth regulation
DISC AXLE Steel square 40x40 mm
WHEELS AXLE Steel square 60x60 mm - 6 holes hub
TOWING BEAM Shift able and inclinable in different positions; hydraulic at demand
SECTIONS ANGULATION Hydraulic, independent front and rear
SOIL SCRAPERS Individual adjustable plungers
DISCS Diam. 610 mm thickness 5 mm - diam. 610 mm thickness 6 mm - diam. 660 mm thickness 6 mm
DISCS DISTANCE 230 mm
  Vertical hydraulic folding in 2 sections for reducing the encumbrance during the transport 2.55 m
  The machines have on series toothed discs on the front and smooth discs on the back.
Different configurations have to be specified at the order.



  EDV I 950 32 12 EDV I 950 32 13
DISCS N. 32 32
WORK. WIDTH 3,65 3,65
TRANSP. WIDTH 2,50 2,50
SUPPORT N. 8 8
HP 140 150
KG 3000 3230
INT. 230 230
Ø DISC 610/5 610/6
  EDV I 950 36 12 EDV I 950 36 13
DISCS N. 36 36
WORK. WIDTH 4,10 4,10
TRANSP. WIDTH 2,50 2,50
SUPPORT N. 10 10
HP 160 180
KG 3240 3440
INT. 230 230
Ø DISC 610/5 610/6
  EDV I 950 40 12 EDV I 950 40 13
DISCS N. 40 40
WORK. WIDTH 4,55 4,55
TRANSP. WIDTH 2,50 2,50
SUPPORT N. 12 12
HP 190 210
KG 3450 3680
DISC DIST. 230 230
Ø DISC 610/5 610/6
CODE DESCRIPTION
ACEDVI95002 Disc and distance piece with soil scraper
ACEDVI95003 Hydraulic movement of the towing beam
ACEDVI95004 Hooking up of discs, diameter 610/6 (each disc)
ACEDVI95005 Additional supports for EDVI
ACEDVI95008 Kit regulation hydraulic balance machine
ACEDVI95009 Couple of oversized wheels
ACEDVI95010 Kit central discs cleaner (each)
ACEDVI95011 Hydraulic kit device complete with pipes
ACEDVI95013 Dislocated towing bell
ACEDVI95014 Light bar kit with support
ACEDVI95015 Solenoid valve kit for hydraulic controls with control unit in the cab.



CAGE ROLLER KIT
Rear hydraulic kit with cage roller diameter 550 with n. 10 pipes or plates, complete with adjustable compensation springs. Foldable in two sections.
At the order, please specify if the roller is with pipes or plates.
For coupling disc harrows with distance 270 mm, please consider the bigger model.

CODE DESCRIPTION
ACRGEDVI90032 Cage roller kit with pipes or plates for EDVI950/970 32
ACRGEDVI90036 Cage roller kit with pipes or plates for EDVI950/970 36
ACRGEDVI90040 Cage roller kit with pipes or plates for EDVI950/970 40
ACRGEDVI90044 Cage roller kit with pipes or plates for EDVI970 44



HARROW COMB DISC KIT
Rear harrow comb kit with springs inclination diam.12 mm, manually adjustable.
For coupling disc harrows with distance 270 mm, please consider the bigger model.

CODE DESCRIPTION
ACSTEDVI90032 Harrow comb kit for EDVI950/970 32
ACSTEDVI90036 Harrow comb kit for EDVI950/970 36
ACSTEDVI90040 Harrow comb kit for EDVI950/970 40
ACSTEDVI90044 Harrow comb kit for EDVI970 44
