Polyvalent equipment used for working and for mixing the hard ground or for crumbling and levelling the soil already worked.

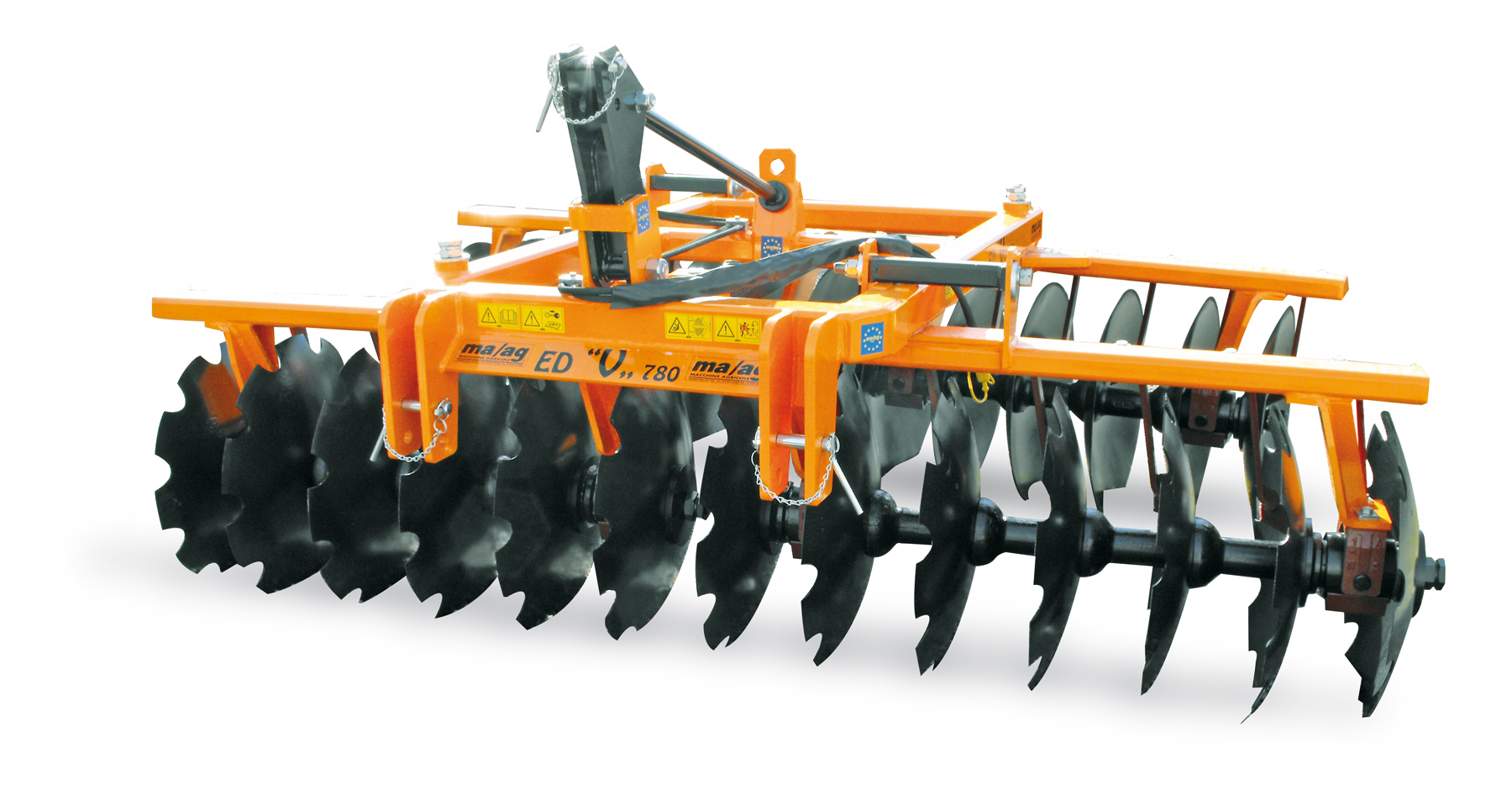

EDV and EDV I disc harrows are characterized by a wide range of usage with working width from 2,10 m to 6,25 m and variable working depth from 10 to 25 cm (according to the model). The supports of the discs are oscillating with double contrasting conical roller bearings, oil seal, greaser and interchangeable crankcase (ma/ag system).

The hydraulic regulation of the discs sections, front and rear, allows a progressive and independent variation of the angle of incidence in order to obtain the optimal work on different kind of ground.



STANDARD EQUIPMENT

FRAME	Tubular steel 100x100x7 mm
SECTIONS	Tubular steel 120x60x7 mm
SUPPORTS	Two conical roller bearings, swiveling, with interchangeable crankcase system ma/ag
DISC AXLE	Steel square 40x40 mm
SOIL SCRAPERS	Individual adjustable plungers
DISCS	Diam. 610 mm thickness 5 mm or 660 mm thickness 6 mm
DISCS DISTANCE	230 mm
SECTIONS ANGULATION	Hydraulic
	The machines have on series toothed discs on the front and smooth discs on the back. Different configurations have to be specified at the order.



---
