Disc harrows with “X” sections

Disc harrows “X” sections
Rating:
( 0 HELIX3_COUNT_RATING )

EDX 3000 P

Star InactiveStar InactiveStar InactiveStar InactiveStar Inactive

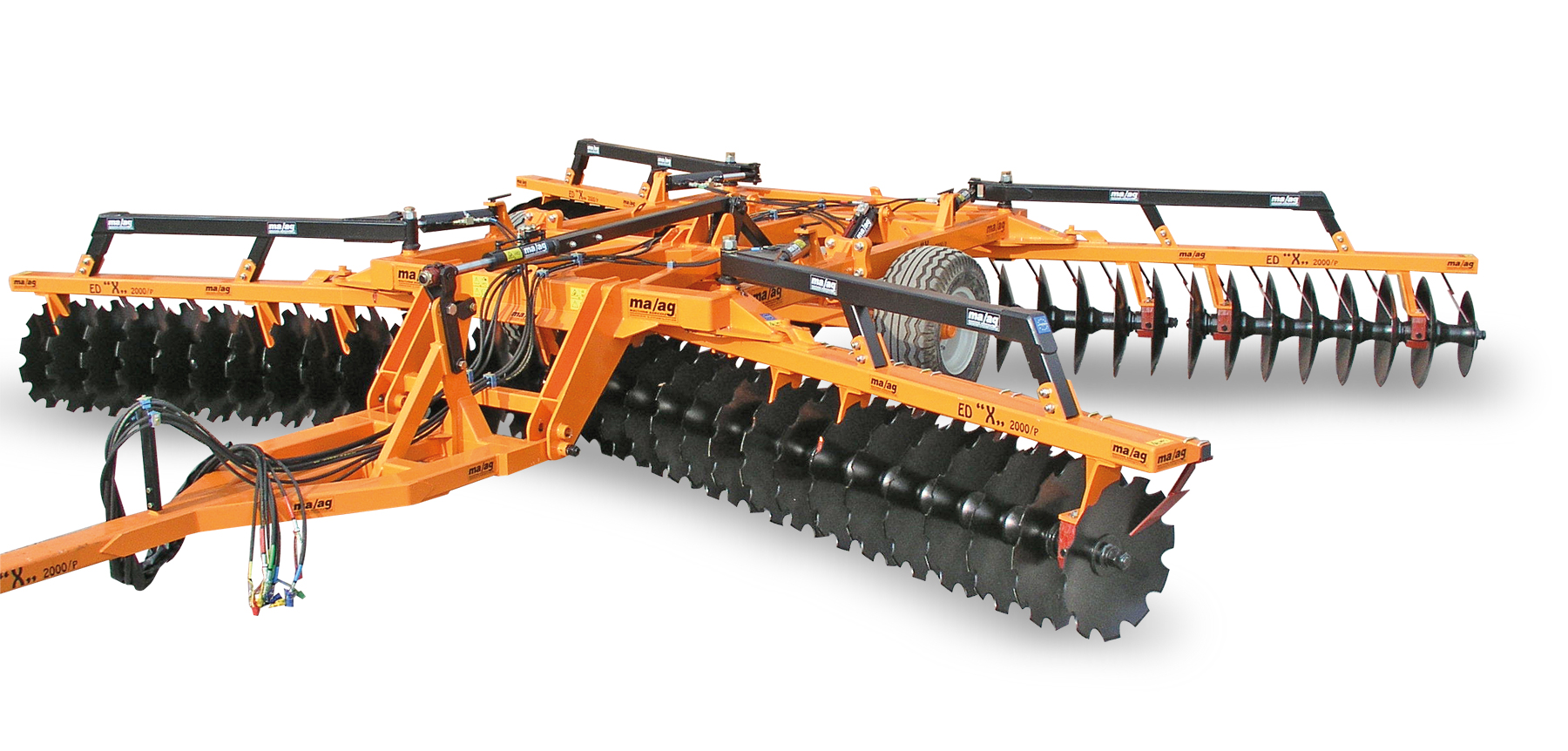

EDX3000P articolo





STANDARD EQUIPMENT
FRAME Tubular steel 150x100x10 mm
SECTIONS Tubular steel 150x100x8 mm
SUPPORTS Two conical roller bearings, swiveling, with interchangeable crankcase system ma/ag
CARRIAGE CONTROL N.2 double effect jack with hydraulic slider for working depth regulation
DISCS AXLE Steel square 40x40 mm
WHEELS AXLE Steel square 80x80 mm - 8 holes hub. Wheels 400/60-15.5
SOIL SCRAPERS Individual adjustable plungers
SECTIONS CONTROL Manual, hydraulic at demand
DISCS Diam. 610 mm thickness 5 mm (at demand). Diam. 660 mm thickness 6 mm or diam. 710 mm thickness 7 mm. Disc distance 230 mm or 270 mm
PICK UP DISCS On series with soil scrapers



Version with disc distance 230 mm

+ - EDX 3000 P – 48 discs Click to collapse
  EDX 3000 P 48 13
DISCS N. 48
WORK. WIDTH 5,65
TRANSP. WIDTH 3,00
ANCHORS N. 12
HP 200
KG 5073
DISC DIST. 230
Ø DISC 660/6
+ - EDX 3000 P – 52 discs Click to collapse
  EDX 3000 P 52 13
DISCS N. 52
WORK. WIDTH 6,10
TRANSP. WIDTH 3,00
ANCHORS N. 12
HP 220
KG 5290
DISC DIST. 230
Ø DISC 660/6
+ - EDX 3000 P – 56 discs Click to collapse
  EDX 3000 P 56 13
DISCS N. 56
WORK. WIDTH 6,55
TRANSP. WIDTH 3,00
ANCHORS N. 12
HP 260
KG 5570
DISC DIST. 230
Ø DISC 660/6
+ - EDX 3000 P – 60 discs Click to collapse
  EDX 3000 P 60 13
DISCS N. 60
WORK. WIDTH 7,00
TRANSP. WIDTH 3,00
ANCHORS N. 16
HP 300
KG 5820
DISC DIST. 230
Ø DISC 660/6



Version with disc distance 270 mm

+ - EDX 3000 P – 44 discs Click to collapse
  EDX 3000 P 44 23 EDX 3000 P 44 24
DISCS N. 44 44
WORK. WIDTH 5,70 5,70
TRANSP. WIDTH 3,00 3,00
ANCHORS N. 12 12
HP 200 220
KG 5130 5570
DISC DIST. 270 270
Ø DISC 660/6 710/7
+ - EDX 3000 P – 48 discs Click to collapse
  EDX 3000 P 48 23 EDX 3000 P 48 24
DISCS N. 48 48
WORK. WIDTH 6,20 6,20
TRANSP. WIDTH 3,00 3,00
ANCHORS N. 12 12
HP 220 240
KG 5340 5820
DISC DIST. 270 270
Ø DISC 660/6 710/7
+ - EDX 3000 P – 52 discs Click to collapse
  EDX 3000 P 52 13
DISCS N. 52
WORK. WIDTH 6,10
TRANSP. WIDTH 3,00
ANCHORS N. 12
HP 220
KG 5290
DISC DIST. 230
Ø DISC 660/6
+ - EDX 3000 P – 56 discs Click to collapse
  EDX 3000 P 56 23 EDX 3000 P 56 24
DISCS N. 56 56
WORK. WIDTH 7,30 7,30
TRANSP. WIDTH 3,00 3,00
ANCHORS N. 12 12
HP 300 330
KG 5850 6430
DISC DIST. 270 270
Ø DISC 660/6 710/7



+ - Accessories Click to collapse
CODE DESCRIPTION
ACEDX300001 Central disc with soil scraper
ACEDX300002 Central anchor
ACEDX300004 Hydraulic system for rear sections
ACEDX300005 Hydraulic system for front and rear sections
ACEDX300007 Hydraulic kit for machine regulation
ACEDX300009 Axle square 80 with brake and iron drum
ACEDX300010 Oversized wheels 500/50-17
ACEDX300011 Homologation for the transport on road (net price)
ACEDX300012 Light bar kit with support
+ - Accessories Hydraulic rear cage roller (diameter 500 10 pipes) Click to collapse
CODE DESCRIPTION
ACRGEDX2NP24 Cage roller diameter 500 10 pipes for EDX2000N/P24
ACRGEDX2NP28 Cage roller diameter 500 10 pipes for EDX2000N/P28
ACRGEDX2NP32 Cage roller diameter 500 10 pipes for EDX2000N/P32
ACRGEDX2NP36 Cage roller diameter 500 10 pipes for EDX2000N/P36
ACRGEDX2NP40 Cage roller diameter 500 10 pipes for EDX2000N/P40
ACRGEDX2NP44 Cage roller diameter 500 10 pipes for EDX2000N/P44
ACRGEDX3P48 Cage roller diameter 500 10 pipes for EDX3000NP/48
ACRGEDX3P52 Cage roller diameter 500 10 pipes for EDX3000NP/52
ACRGEDX3P56 Cage roller diameter 500 10 pipes for EDX3000NP/56
ACRGEDX3P60 Cage roller diameter 500 10 pipes for EDX3000NP/60
+ - Accessories Hydraulic rear spiral roller Click to collapse
CODE DESCRIPTION
ACRSEDX2NP24 Spiral roller for EDX2000N/P24
ACRSEDX2NP28 Spiral roller for EDX2000N/P28
ACRSEDX2NP32 Spiral roller for EDX2000N/P32
ACRSEDX2NP36 Spiral roller for EDX2000N/P36
ACRSEDX2NP40 Spiral roller for EDX2000N/P40
ACRSEDX2NP44 Spiral roller for EDX2000N/P44
ACRSEDX3P48 Spiral roller for EDX3000NP/48
ACRSEDX3P52 Spiral roller for EDX3000NP/52
ACRSEDX3P56 Spiral roller for EDX3000NP/56
ACRSEDX3P60 Spiral roller for EDX3000NP/60
+ - Accessories Rear hydraulic grubber kit - square spring 30x30 Click to collapse
CODE DESCRIPTION
ACEQEDX2NP24 Kit grubber spring Q30X30 for EDX2000N/P24
ACEQEDX2NP28 Kit grubber spring Q30X30 for EDX2000N/P28
ACEQEDX2NP32 Kit grubber spring Q30X30 for EDX2000N/P32
ACEQEDX2NP36 Kit grubber spring Q30X30 for EDX2000N/P36
ACEQEDX2NP40 Kit grubber spring Q30X30 for EDX2000N/P40
ACEQEDX2NP44 Kit grubber spring Q30X30 for EDX2000N/P44
ACEQEDX3P48 Kit grubber spring Q30X30 for EDX3000NP/48
ACEQEDX3P52 Kit grubber spring Q30X30 for EDX3000NP/52
ACEQEDX3P56 Kit grubber spring Q30X30 for EDX3000NP/56
ACEQEDX3P60 Kit grubber spring Q30X30 for EDX3000NP/60
+ - Accessories Rear hydraulic grubber kit with rigid anchors Click to collapse
CODE DESCRIPTION
ACETEDX2NP24 Grubber kit with rigid anchors for EDX2000N/P24
ACETEDX2NP28 Grubber kit with rigid anchors for EDX2000N/P28
ACETEDX2NP32 Grubber kit with rigid anchors for EDX2000N/P32
ACETEDX2NP36 Grubber kit with rigid anchors for EDX2000N/P36
ACETEDX2NP40 Grubber kit with rigid anchors for EDX2000N/P40
ACETEDX2NP44 Grubber kit with rigid anchors for EDX2000N/P44
ACETEDX3P48 Grubber kit with rigid anchors for EDX3000NP/48
ACETEDX3P52 Grubber kit with rigid anchors for EDX3000NP/52
ACETEDX3P56 Grubber kit with rigid anchors for EDX3000NP/56
ACETEDX3P60 Grubber kit with rigid anchors for EDX3000NP/60
