EDX 780 M

Star InactiveStar InactiveStar InactiveStar InactiveStar Inactive

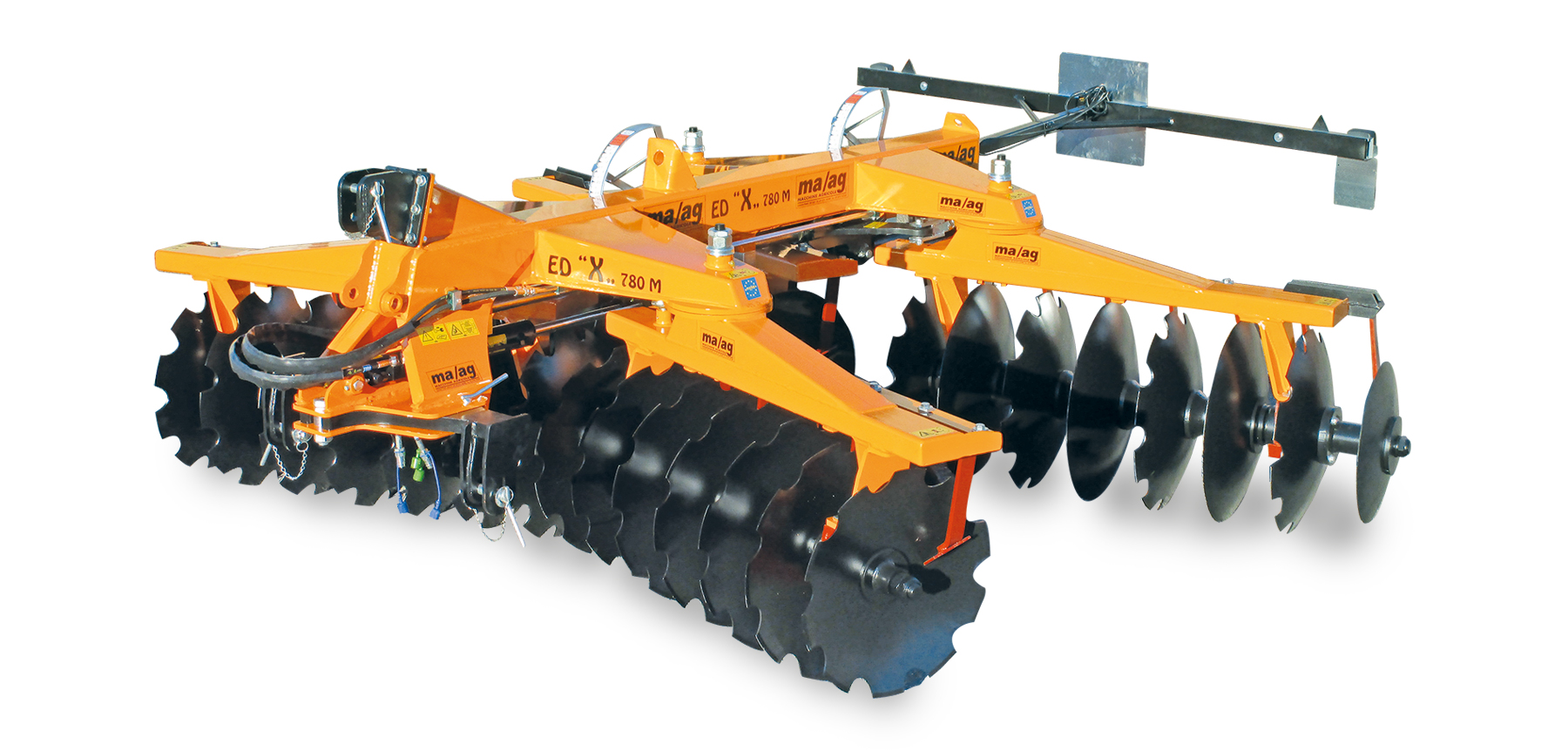

Edx 780 M Scontornata articolo



Polyvalent equipment used for working and for mixing the hard ground or for crumbling and levelling the soil already worked.

EDX disc harrows are characterized by a wide range of usage with working width from 1,50 m to 7,30 m and variable working depth from 10 to 25 cm (according to the model). The supports of the discs are oscillating with double contrasting conical roller bearings, oil seal, greaser and interchangeable crankcase (ma/ag system).

The hydraulic regulation of the four sections of the discs, front and rear, allows a progressive and independent variation of the angle of incidence in order to obtain the optimal work on different kind of ground. The strong structure guarantees an adequate flex-torsion rigidity and allows (where expected) to complete the equipment with a wide range of accessories.



STANDARD EQUIPMENT
FRAME Tubular steel 180x180x8 mm
SECTIONS Tubular steel 140x70x7mm turning for reducing the encumbrance on road
SUPPORTS Two conical roller bearing, swiveling, with interchangeable crankcase system ma/ag
DISC AXLE Steel square 40x40 mm
SOIL SCRAPERS Individual adjustable plungers
SECTIONS CONTROL Opening, closing and hydraulic regulation
DISCS Diam. 610 mm thickness 5 mm or diam. 660 mm thickness 6 mm
  The machines have on series toothed discs on the front and smooth discs on the back. Different configurations have to be specified at the order.



Version with disc distance 230 mm

  EDX 780M 21 12 EDX 780M 21 13
DISCS N. 21 21
WORK. WIDTH 2,40 2,40
TRANSP. WIDTH 2,50 2,50
SUPPORTS N. 8 8
HP 110 120
KG 1640 1760
DISC DIST. 230 230
Ø DISC 610/5 660/6
  EDX 780M 25 12 EDX 780M 25 13
DISCS N. 25 25
WORK. WIDTH 2,85 2,85
TRANSP. WIDTH 2,50 2,50
SUPPORTS N. 8 8
HP 130 140
KG 1750 1890
DISC DIST. 230 230
Ø DISC 610/5 660/6
  EDX 780M 29 12 EDX 780M 29 13
DISCS N. 29 29
WORK. WIDTH 3,30 3,30
TRANSP. WIDTH 2,50 2,50
SUPPORTS N. 8 8
HP 150 160
KG 1855 2030
DISC DIST. 230 230
Ø DISC 610/5 660/6
  EDX 780M 33 12 EDX 780M 33 13
DISCS N. 33 33
WORK. WIDTH 3,75 3,75
TRANSP. WIDTH 2,50 2,50
SUPPORTS N. 8 8
HP 170 180
KG 2010 2180
DISC DIST. 230 230
Ø DISC 610/5 660/6



Version with disc distance 270 mm

  EDX 780M 21 22 EDX 780M 21 23
DISCS N. 21 21
WORK. WIDTH 2,80 2,80
TRANSP. WIDTH 2,50 2,50
SUPPORTS N. 8 8
HP 130 140
KG 1640 1760
DISC DIST. 270 270
Ø DISC 610/5 660/6
  EDX 780M 25 22 EDX 780M 25 23
DISCS N. 25 25
WORK. WIDTH 3,35 3,35
TRANSP. WIDTH 2,50 2,50
SUPPORTS N. 8 8
HP 150 160
KG 1890 2040
DISC DIST. 270 270
Ø DISC 610/5 660/6
  EDX 780M 29 22 EDX 780M 29 23
DISCS N. 29 29
WORK. WIDTH 3,90 3,90
TRANSP. WIDTH 2,60 2,60
SUPPORTS N. 8 8
HP 170 180
KG 2090 2250
DISC DIST. 270 270
Ø DISC 610/5 660/6



CODE DESCRIPTION
ACEDX780M01 Linkage to the III swiveling damped point
ACEDX780M02 Couple of discs and distance piece
ACEDX780M05 Light bar kit with support
ACEDX780M12 ACEDX780M05 Additional charge for hooking up discs 610/6 (each)
